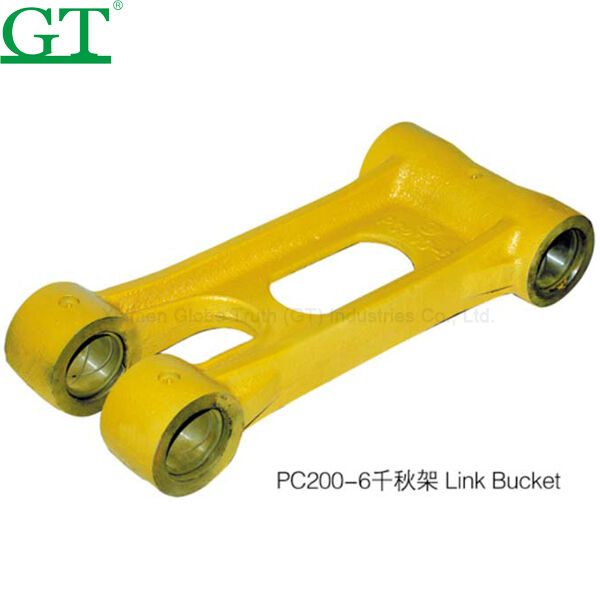

Bucket linkage is a key transmission component connecting boom, bucket and bucket, which transmits hydraulic power through multiple sets of hinge structures and directly determines the action accuracy and load capacity of bucket.Our products cover 1-50 tons of excavators, precisely adapted to Carter 336D, Komatsu PC200-8, Sany SY215C, Volvo EC360 and other 50 + mainstream models, covering from municipal fine operations to mine heavy-duty construction.

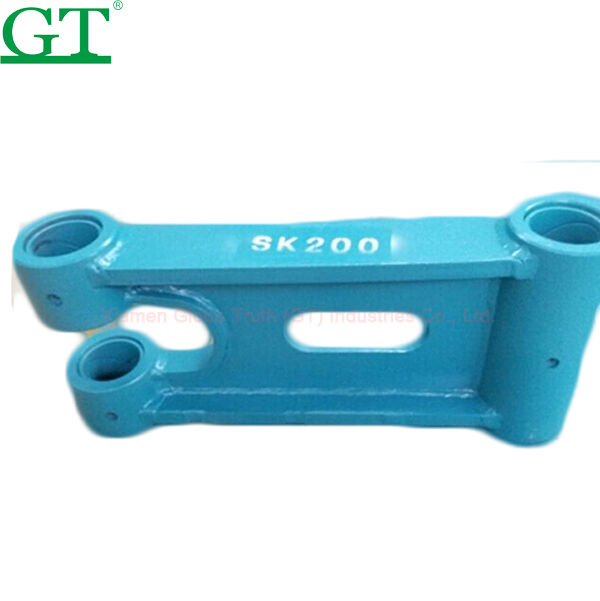

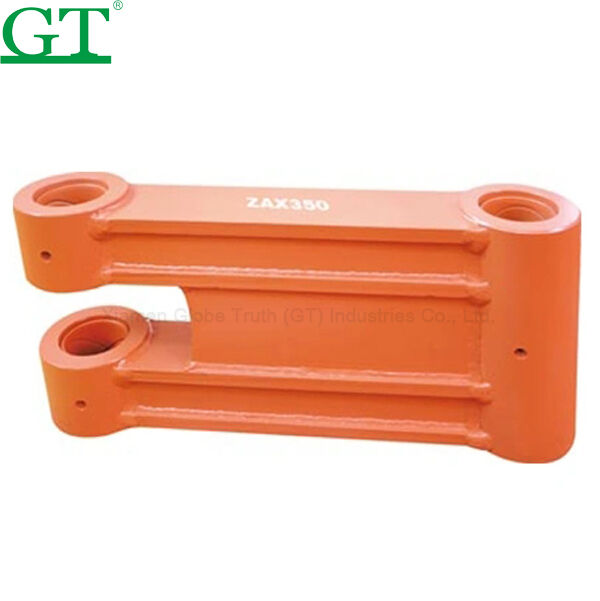

Three series are designed for different scenarios: the mine heavy-duty model is integrally forged with 40CrNiMo, and the diameter of the trunnion is increased to 80mm, which is suitable for Carter 336D to withstand 150kN impact force in hard rock mining, and the deformation is controlled within 0.3mm;HG785 high-strength steel is selected for municipal engineering. After shot blasting treatment, it is suitable for Komatsu PC200-8 to maintain stable action when concrete is broken. The tolerance of connecting rod pin hole is ≤ 0.02 mm to ensure that the bucket rotates without jamming;The special model for micro-digging reduces weight by 20% through topology optimization, improves fuel efficiency when digging ditches in orchards with Kubota U15, and reduces fuel consumption by 0.3 L per hour.
In terms of installation accuracy, all connecting rods are processed according to the original coordinate system. The coaxiality error of the connecting hole of SANY SY215C is ≤ 0.04 mm. The replacement can be completed in 1.5 hours by a team of two people without additional debugging.According to the feedback from a municipal engineering team, the angle error of bucket retraction and release was reduced from 3 ° to 0. 5 ° after replacement, and the flatness of trench bottom was increased by 40% when laying pipelines; after the use of heavy-duty funds in Shanxi mines, the fracture rate of connecting rods was reduced from once a month to zero in half a year, and the attendance rate of equipment was increased by 25%.
22
Jul
The previous connecting rod was bent after being used in the iron ore mine for 3 months. After replacing this integrally forged heavy-duty model, the Carter 336 D loaded 200 cars of hard rock every day. After 6 months, the connecting rod did not deform, and the bucket was retracted and released as smoothly as the new machine. The most unexpected thing is that the wear of the pin has slowed down, and now it is only replaced once every two months, which saves a lot of effort.
Municipal pipeline laying requires high precision, the original connecting rod pin hole is worn out, and the depth difference of trench digging is 5cm.After changing this model with precise pin holes, the bottom of the ditch dug by Komatsu PC200 was very smooth, the error was controlled within 2cm, the supervisor passed it once, and the construction period was 10 days ahead of schedule.
There are many transitions in the orchard. The original connecting rod is too heavy. The fuel consumption of Kubota U15 is 3.8 L per hour. Changed this lightweight, looks thin but enough strength, digging fruit tree pits is no problem, now fuel consumption is reduced to 3.4L, 8 hours a day can save more than 3 liters of oil, a year down can save more than 2000 oil money.
The connecting rod was accidentally broken when the house was demolished last month. After contacting the manufacturer, it was said that a new one was sent in 3 days during the warranty period. Now the Sany SY215 special connecting rod has been used for a month without any problems. It is very stable when lifting big stones. It is much more reliable than the miscellaneous brands bought before.
