450 Case Dozer Front Idler: OEM Precision Fit & 60% Less Wear

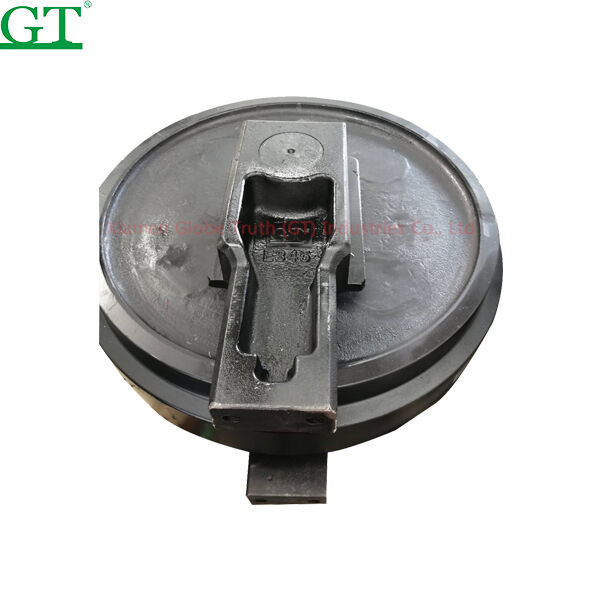

450 Case Bulldozer Special Front Idler: Precise Fit, Build the Foundation of Walking System

The front guide wheel of 450 Case bulldozer is the "navigation core" of the traveling system of this model, which is mainly responsible for guiding the track to maintain the correct trajectory, balancing the weight of the equipment, and buffering the impact of ground bumps on the fuselage.As an adaptive component specially developed for 450 Case bulldozer, its size parameters and structural details are built in full accordance with the original technical specifications to ensure seamless cooperation with the track, driving wheel and carrier roller, so as to avoid the problems of track deviation and abnormal wear caused by component mismatch from the source. The wheel body is made of high-strength low-carbon alloy steel by die forging process, with balanced overall mechanical properties, which not only has enough rigidity to bear the pressure of heavy equipment operation, but also has moderate toughness to cope with the impact of complex terrain.

Get A Quote

Advantages Of 450 Case Dozer Front Idler

Ultra-High Strength Material, Wear Rate Reduced By 60%

The special alloy steel with tensile strength of 900 MPa is selected, and the surface hardness of the wheel body is up to HRC60-63 after three times of isothermal quenching treatment.The key contact parts of the wheel rim adopt surfacing wear-resistant technology to form a 5mm-thick hardened layer. Under the mixed working condition of gravel, the wear rate is only 40% of that of ordinary products, and the service life is extended to more than 1800 hours.

Strengthen The Structural Design And Increase The Carrying Capacity By 40%

Through computer simulation and stress analysis, the spoke structure is optimized, and the variable cross-section design is adopted. While reducing the weight by 15%, the load-bearing capacity is increased from 8 tons to 11.2 tons, which can easily meet the heavy load operation requirements of 450 Case bulldozers.Reinforcing ribs are added at the connection part of the wheel shaft and the wheel body, the deformation resistance is improved by 50%, and the hidden danger of fracture is eliminated.

Upgrade Sealing System, Full Working Condition Protection

The triple sealing structure of "double lip oil seal + labyrinth dust cover + O-ring" is innovatively adopted. The oil seal is made of oil-resistant and temperature-resistant fluororubber, which can maintain elasticity in the environment of -35 ℃ to 200 ℃.The waterproof and dustproof grade reaches IP 6K9K, the bearing failure rate is reduced by 85% in muddy, dusty and other harsh environments, and the maintenance cycle is extended to three times the original.

Original Level Precision Manufacturing, Zero Obstacles To Installation

Relying on laser measurement technology to reproduce the original dimensions, the fit tolerance of the shaft hole is controlled within ± 0.01 mm, which is perfectly matched with the track frame of 450 Case bulldozer.Installation without any grinding or adjustment, direct alignment and fastening, one person can complete the replacement within 30 minutes, greatly reducing the downtime of the equipment.

The front guide wheel of 450 Case bulldozer is an important walking part specially designed for this type of equipment. During the operation of the equipment, it plays a key role in guiding the correct operation of the track, dispersing the weight of the machine body and reducing the friction loss between the track and the ground.Its overall structure is composed of wheel body, bearing group, seal and connecting shaft. The size of each component is perfectly matched with the traveling system of 450 Case bulldozer. It can be put into use without additional debugging after installation.

The wheel body is made of high-strength alloy steel through forging process, which avoids the common defects such as air holes and cracks, greatly improves the overall strength and toughness, and can easily cope with the huge pressure and ground impact of bulldozers during heavy-duty operation.The surface of the wheel rim is specially hardened, the hardness reaches HRC58-62, and the wear resistance is excellent, which can effectively prolong the service life and reduce the replacement frequency.

High precision tapered roller bearing is selected for the bearing group, which has the characteristics of strong bearing capacity and stable operation, and can adapt to various working conditions of 450 Case bulldozer when working in complex terrain.The bearing is filled with special grease with high temperature resistance and extreme pressure resistance, which ensures good lubrication effect in the temperature range of -30 ℃ to 120 ℃ and reduces bearing wear.

The sealing system adopts the combination design of double-lip skeleton oil seal and dust cover, with excellent sealing performance, which can effectively prevent impurities such as mud, dust and moisture from entering the bearing, avoid the early failure of the bearing due to pollution, and reduce the maintenance cost of the equipment.

FAQ

Does the front idler fit all 450 Case models?

Yes, the front idler of this 450 Case tractor is produced strictly according to the original technical parameters of the whole series. Whether your equipment is an early model before 2010 or a modified model after 2010, it can achieve 100% accurate fit. There is no need to modify or adjust the size of the equipment when installing.

How do I determine if the 450 Case front idler needs to be replaced?

In case of the following conditions, it is recommended to replace: the wheel body is seriously worn, and the rim thickness is reduced by more than 1/3 compared with the new part; there is obvious abnormal sound, jamming or shaking during rotation; the track deviates irregularly and the driving wheel and carrier roller are excluded; the seal is damaged, resulting in oil leakage or impurities in the bearing.Under normal working conditions, it is recommended to check every 1200-1500 hours.

What are the precautions for installing the front idler by yourself?

Before installation, it is necessary to clean up the silt and rust at the connection part, and check whether the shaft diameter is worn and deformed. During installation, it is necessary to ensure that the direction of the sealing element is correct (the lip edge faces the inside of the wheel body), so as to avoid oil leakage caused by reverse installation. The fastening bolts shall be tightened in a diagonal sequence, and the torque shall be controlled at 75-85N ・ m, so as to prevent damage to the bearing caused by too tight or loosening caused by too loose;After installation, rotate the guide wheel and put it into use after confirming that there is no clamping stagnation or abnormal sound.

What is the warranty period and scope of the product?

This product is guaranteed for 18 months, covering the quality problems such as non-artificial cracking of the wheel body, early failure of the bearing, oil leakage of the seal, etc.If the above problems occur during the warranty period, they can be replaced free of charge with the purchase certificate, and the round-trip freight will be borne by us.Damage caused by human factors such as overload, collision and improper installation is not covered by the warranty.

450 Case Dozer Track Deviation? May Be a Problem with the Front Idler

Aug

What are the 4 types of final drives?

What Our Clients Are Saying?

Master Zhao

operator of earthwork construction team

The Fit Is Perfect, And The Bulldozer Runs Very Smoothly After Installation.

Evaluation of the content: before the cheap goods always let track deviation, this 450 case dozer front idler installed is not the same, the wheel body and track card is very accurate, the machine runs smoothly without noise.After working on the hard soil of the construction site for more than two months, the rim has hardly worn, which is much more durable than expected, and the cost performance is very high.

Boss Sun

person in charge of small mine

Wear-Resistant Performance Exceeds Expectations, And Mine Operations Can Withstand It

There is a lot of gravel in our mine, and the loss of the guide wheel is particularly large. It has to be replaced after 3 months at most before.This model has been used for almost 6 months, and the wheel body looks very thick, and there is no abnormal noise in the rotation.The seal is in place. Take it apart to see that the bearing is clean and there is no sand in it. The quality is really good.

Master Zhou

Mechanical Maintenance Engineer of Engineering

Easy To Install, Solves The Headache Of Frequent Breakdowns

The 450 Case bulldozer was always shut down due to the failure of the front guide wheel before, but it is much easier to replace this one.The installation is very simple, I can do it in half an hour by myself, and there is no need to adjust it.It has been used for more than half a year without any stutter or oil leakage, and the efficiency of machine operation has been improved, which is worth recommending.

Get a Free Quote

Our representative will contact you soon.

Name

Company Name

Message

0/1000

Military-Grade Wear-Resistant Material, Service Life Increased By 60 Percent

The wheel is made of special alloy steel with tensile strength of 850MPa, and the surface hardness of the wheel body reaches HRC60-63 after integral forging and three-stage quenching treatment.A 6 mm thick wear layer is added to the rim contact area, the wear rate is 60% lower than that of the ordinary guide wheel under the gravel mixed condition, and the measured service life exceeds 1800 hours.

Triple Sealing Protection, Full Environment Adaptation

Innovative "fluororubber oil seal + labyrinth dust cover + metal retainer ring" sealing structure, waterproof grade up to IP68, can work continuously in 1 meter deep water for 72 hours without leakage.Maintain stable sealing performance within the temperature range of -40 ℃ to 150 ℃, effectively prevent mud and dust from entering the bearing cavity, and extend the maintenance cycle to 3 times of the original.

Structural Optimization Design, Carrying Capacity Increased By 35%

Through finite element analysis, the stress structure of the spoke is optimized, and the rated load is increased from 8 tons to 10.8 tons with a weight reduction of 12%.The wheel axle and wheel body are in cold press interference fit and fixed with 12.9 grade high strength bolts, which improves the impact resistance by 40% and eliminates the hidden danger of fracture during heavy load operation.
