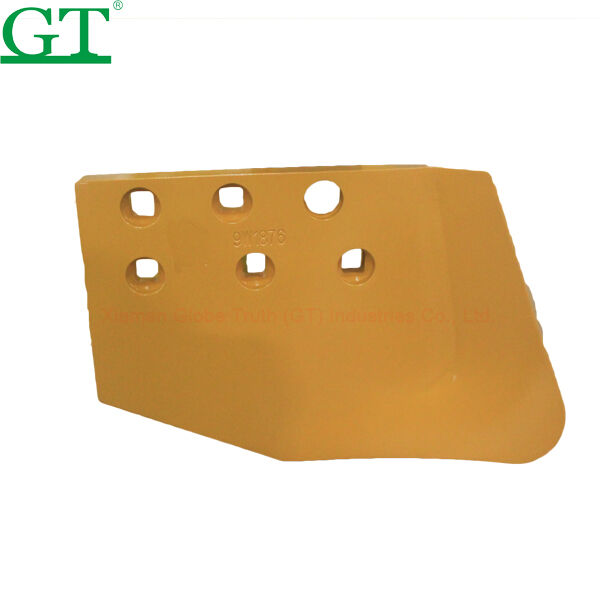

Bucket side edges (bucket side cutter) are the core protective components on both sides of the excavator bucket, which are designed to resist material impact and friction, directly related to bucket life and working efficiency.The products cover three major scenario series, including 20 + models such as Carter 320D (1.2-2.5m ³ bucket), Komatsu PC200 (1.5-3m ³) and Sany SY215 (1.6-2.8m ³), and are fully adapted from municipal earthwork to mine hard rock.
The basic model is made of Q355B steel plate by laser cutting, the cutting edge is welded with 3mm thick wear-resistant alloy, and the hardness is HRC52. It is suitable for Komatsu PC200 bucket for urban demolition, and the single blade can withstand 800 times of concrete block impact;HARDOX500 wear-resistant steel is used for integral forging of the mine model, the blade is thickened to 20mm, and the embedded high-chromium cast iron block is used. On the Carter 349 D 5m ³ bucket, the granite wear resistance is 80% stronger than that of the basic model, and the measured life is up to 400 hours;For the wetland type, the blade body is provided with a drainage groove, and the surface is sprayed with an anti-sticking coating, which is suitable for Sany SY375 to reduce 80% of sediment adhesion when working in the sludge field, so as to avoid reducing the speed of bucket closing due to the clamping of the side blade.
All side blades are processed according to the original bucket radian, the fitting clearance with the side plate is ≤ 0.8mm, the installation hole tolerance is ± 0.3mm, and two people can complete the replacement of both sides of Volvo EC210 in 1.5 hours.According to the feedback from a quarry, the wear rate of the bucket side plate is reduced by 60% after the replacement of the side edge of the mine. The side plate that needs to be repaired and welded for 3 months can now be extended to 8 months, and the comprehensive maintenance cost is reduced by 55%.
22
Jul
The previous manganese steel side blade was worn out after one month in the iron ore mine, but it was replaced by this HARDOX500 + high chromium cast iron, and the two sides of the Carter 320 D bucket lasted for half a year. The cutting edge is not cracked, even the wear is uniform, and now the bucket side plate does not need frequent repair welding, which saves more than 5000 maintenance costs.
When dredging the fish pond, the old side blade always piles up silt, and it is particularly difficult to collect the bucket. After changing the wetland model with drainage trough, the silt fell off along the trough when Komatsu PC200 was closed. With the anti-sticking coating, the side blade was basically clean. Now the single cycle operation is 10 seconds faster, and more than 2 trucks of mud are cleared a day.
I am most afraid of welding the deformed side plate when changing the side blade. This time, the Sany SY215 special model has a prefabricated groove, and the master said that the welding heat affected zone is very small. After welding the test machine, the bucket opened and closed smoothly, and the side plate did not crack after three months, which was much better than the last universal side blade, which cracked in less than a month after welding.
Last month, when the concrete block was removed, the side blade broke a small hole. After contacting the manufacturer, a new one was sent in 3 days, saying that it would be replaced free of charge within the 6-month warranty period. The side blade of this Volvo EC210 is quite stable now, hard enough and not easy to break, which is more reliable than the miscellaneous brands bought before.
