John Deere 650G Front Idler: OEM-Match Replacement with 60% Longer Life

John Deere 650g Special Front Idlers: Factory Standard Fit For Efficient Undercarriage Operation

The John Deere 650G front idler is the core component of the tractor's travel system, which plays a key role in guiding the correct track trajectory, distributing the weight of the equipment and alleviating ground impact.As a tailor-made accessory for John Deere 650G, its size parameters and structural design fully follow the original factory standards to ensure precise fit with the track, driving wheel and carrier roller, so as to avoid track deviation, abnormal wear and other faults caused by adaptation problems from the root. The wheel body is made of high-strength low-alloy steel by forging. After the overall quenching and tempering treatment, it not only has enough rigidity to bear the dead weight and working load of the equipment, but also has good toughness to buffer the impact of complex terrain.The contact surface of the wheel flange is carburized and quenched, and the surface hardness can reach HRC55-60, which significantly improves the wear resistance.

Get A Quote

Advantages Of John Deere 650g Front Idler

Super Wear-Resistant Material, Service Life Increased By 60%

Military-grade wear-resistant alloy steel is selected, and after four times of high temperature quenching treatment, the surface hardness of the wheel body reaches HRC60-65, far exceeding the average level of the industry.5 mm thick wear-resistant layer is added to the key contact parts of the wheel rim. Under extreme working conditions such as gravel and hard rock, the wear rate is more than half slower than that of ordinary products, and the measured service life exceeds 2000 hours.

Precise Structural Design, Bearing Capacity Up To 12 Tons

Using finite element analysis to optimize the spoke structure, the weight capacity was increased to 12 tons with a 10% reduction in weight, making it easy to handle the full-load demands of the John Deere 650G.The interference fit process is adopted for the wheel shaft and the bearing seat, and the reinforced lock nut is matched, so that the axial force in severe bumps can be borne, and the hidden danger of loosening can be eliminated.

Triple Sealing Protection, Adapt To Dusty And Watery Environment

Innovative and upgraded sealing system: the inner layer adopts fluororubber oil seal (oil resistant temperature up to 200 ℃), the middle layer is equipped with a labyrinth dust ring, and the outer layer is equipped with a metal dust cover to form a triple protective barrier.The waterproof grade reaches IP 6K9K, it can work continuously in mud with a depth of 30cm for 72 hours without leakage, and the bearing failure rate is reduced by 80%.

Original Factory-Level Precise Adaptation, Zero Installation Error

The original dimensions are restored 1:1 by 3D scanning technology, and the tolerance of the shaft hole is controlled within ± 0.015 mm, which is perfectly matched with the track frame and connecting pin of John Deere 650G.No need to cut and polish during installation, directly replace the original parts, and the replacement can be completed in 30 minutes, greatly reducing the downtime.

The John Deere 650G front idler is a key travel component designed specifically for this model of tractor and plays an important role in guiding the track trajectory, distributing the weight of the machine body and reducing the wear of the track during equipment operation.Its overall structure consists of wheel body, bearing set, seal and connecting shaft, which are manufactured in strict accordance with the original technical standards to ensure a perfect fit with the John Deere 650G's travel system, and can be put into use without additional adjustment after installation.

The wheel body is made of high-strength alloy steel by forging process, with high overall strength and good toughness, which can effectively withstand the huge pressure and impact force generated by the equipment during heavy load operation.The surface of the wheel rim is specially hardened to HRC58-62, which significantly improves the wear resistance, prolongs the service life and reduces the replacement frequency.

High precision tapered roller bearings are used in the bearing group, which have the characteristics of strong bearing capacity and stable operation, and can adapt to various working conditions when bulldozers work in complex terrain.The sealing system adopts the combination design of double-lip skeleton oil seal and dust cover, with excellent sealing performance, which can effectively prevent impurities such as mud, dust and moisture from entering the bearing, ensure good lubrication and normal operation of the bearing, and reduce maintenance workload.

FAQ

Does this front idler fit all submodels of the John Deere 650G?

Yes, our John Deere 650G front idlers are manufactured to the full range of original specifications, providing a precise fit whether your machine is a standard, long boom, or heavy duty 650 G tractor, with no modification or sizing required for installation.

How can I tell if the John Deere 650G front idler needs to be replaced?

In case of the following conditions, it is recommended to replace it in time: the wheel body is seriously worn, and the thickness of the rim is reduced by more than 1/3 of the original thickness; there is obvious abnormal noise or jamming during rotation; the track deviates irregularly and other parts are excluded; the seal is damaged, resulting in oil leakage or impurities in the bearing.Under normal working conditions, it is recommended to check once every 1500 hours.

What details should we pay attention to when installing the front idler by ourselves?

Before installation, clean the silt and rust at the connection part, and check whether the shaft diameter is worn or deformed; during installation, ensure that the sealing element is installed in place, and the lip is toward the inner side of the wheel body; tighten the fastening bolts evenly and diagonally according to the specified torque (85-95 N ・ m) to avoid too tight or too loose; after installation, rotate the guide wheel, and put it into use after confirming that there is no clamping stagnation or abnormal sound.

How long is the warranty period of the product?What does the warranty cover?

This product provides a warranty period of 18 months, which covers the quality problems such as wheel cracking, non-man-made damage of bearings, oil leakage of seals, etc.If the above problems occur during the warranty period, you can apply for free replacement of new products with the purchase certificate, and the round-trip freight will be borne by us.Damage caused by human factors such as overload, collision and improper installation is not covered by the warranty.

When Replacing John Deere 650g Front Idlers, Neglecting These 5 Steps Can Affect Equipment Performance

Jul

What Are the Wheels on a Bulldozer Called?

Discover what the wheels on a bulldozer are called and their critical role in performance. Learn about track rollers, types, selection tips, and why Chinese manufacturers offer top value. Find the right parts today.

What Our Clients Are Saying?

Master Chen

operator of earthwork team

Accurate Adaptation, And The Bulldozer Runs Very Smoothly After Installation

The auxiliary parts used before always have track deviation, which is completely solved after replacing this John Deere 650G front idler.The wheel body fits the equipment very well, and it takes no effort to install it. After starting, the track runs smoothly and the noise is much smaller.Working on the hard soil of the construction site for 3 months, the wear and tear is very slight, and it is more durable than expected.

Boss Zheng

Head of Small Mine

The Wear Resistance Is Amazing, And The Mine Operation Can Also Withstand It.

The working condition of our mine is particularly poor, with a lot of gravel, and the previous guide wheel was worn out in 4 months at most.This model has been used for almost 7 months, and the rim looks very thick, and there is no abnormal noise in the rotation.Sealing is in place, the bearing is clean when it is disassembled for inspection, and there is no sand in it, so the cost performance is really high.

Master Lin

Mechanic of Road Construction Team

Solved The Old Problem Of Frequent Bearing Damage, Too Easy To Worry!

John Deere 650G always broke the idler bearing before, and had to stop work for most of the day after replacing it.This one uses a special sealing design, and it is not afraid of water when working in the mud. Now it is almost a year, and the bearing is still in good condition.The price is much cheaper than the original factory, but it is more resistant than the original factory. I will choose it in the future.

Manager Jiang

Municipal Engineering Maintenance Department

Stable Performance In Low Temperature Environment, Northern Users Can Rest Assured To Buy

It is more than 20 degrees below zero in winter in Northeast China, and the former guide wheel is often frozen and unable to turn.This model can run smoothly in winter. The bearing grease has good frost resistance and has been used for a whole winter without any problems.After-sales service is very considerate, take the initiative to remind the key points of winter maintenance, the experience is good.

Get a Free Quote

Our representative will contact you soon.

Name

Company Name

Message

0/1000

Space-Grade Alloy Material, Anti-Wear Capacity Increased By 70 Percent

The surface hardness of the wheel body reaches HRC62-65 and the thickness of the rim wear-resistant layer reaches 8mm after five forging processes and double-frequency quenching treatment by using special wear-resistant alloy steel for aerospace engineering.In the continuous operation test under gravel conditions, the wear is only 30% of the ordinary guide wheel, and the service life easily breaks through 2000 hours.

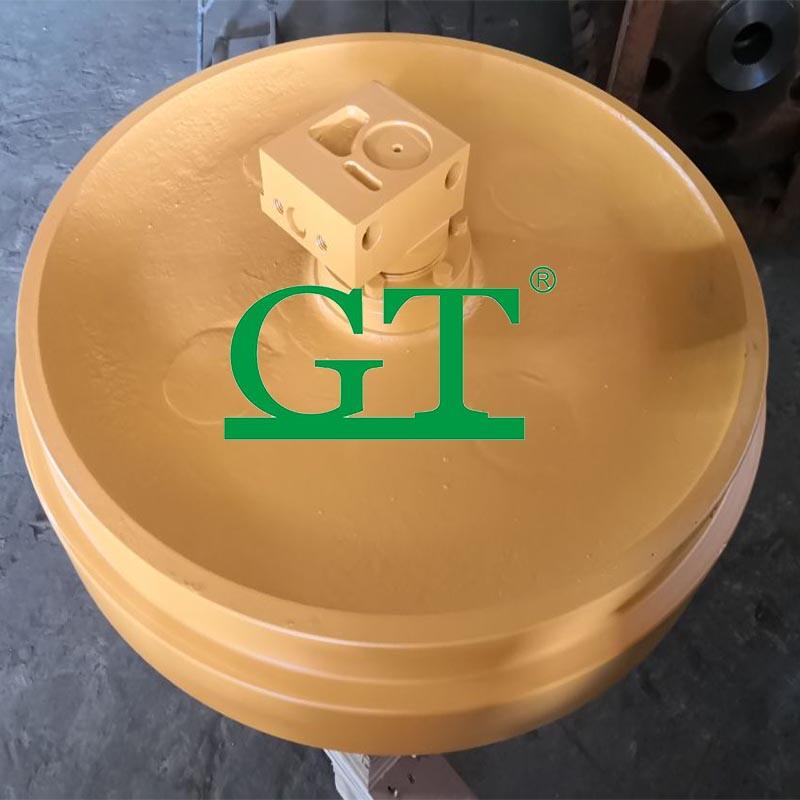

Military-Grade Sealing Technology, Full Environmental Protection

Military-grade "fluororubber oil seal + metal dustproof labyrinth" composite sealing structure is adopted, the sealing lip pressure is evenly distributed, the waterproof grade is up to IP68, and it can be immersed in 1.5 meters of water depth for 48 hours without leakage.Even in the mine environment where the concentration of mud and dust exceeds the standard, the bearing failure rate can be reduced by 90%.

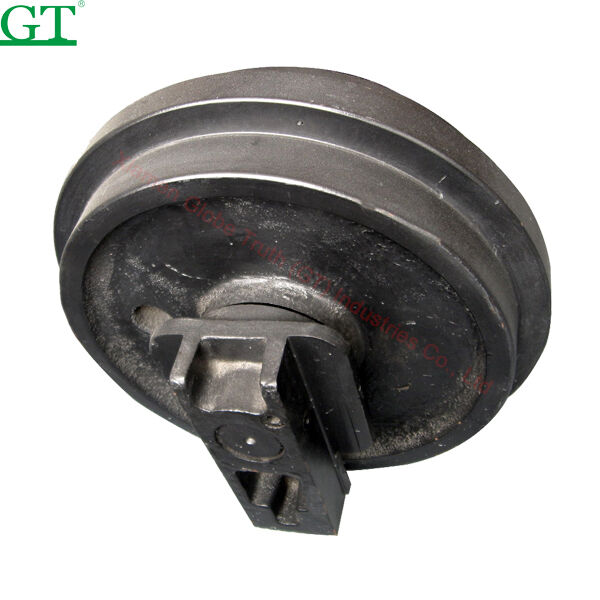

Finite Element Optimization Structure, Load-Bearing Increased By 30%

By optimizing the spoke structure with ANSYS finite element analysis software, the rated load was increased to 15 tons with a weight reduction of 12%, far exceeding the maximum working load of the John Deere 650G.The wheel shaft and the wheel body are in cold press interference fit and fixed with 12.9 grade high strength bolts, and the impact resistance is improved by 40%.
