UNDERCARRIAGE HARDWARE-Bolt and nut

HARDWARE RANGE

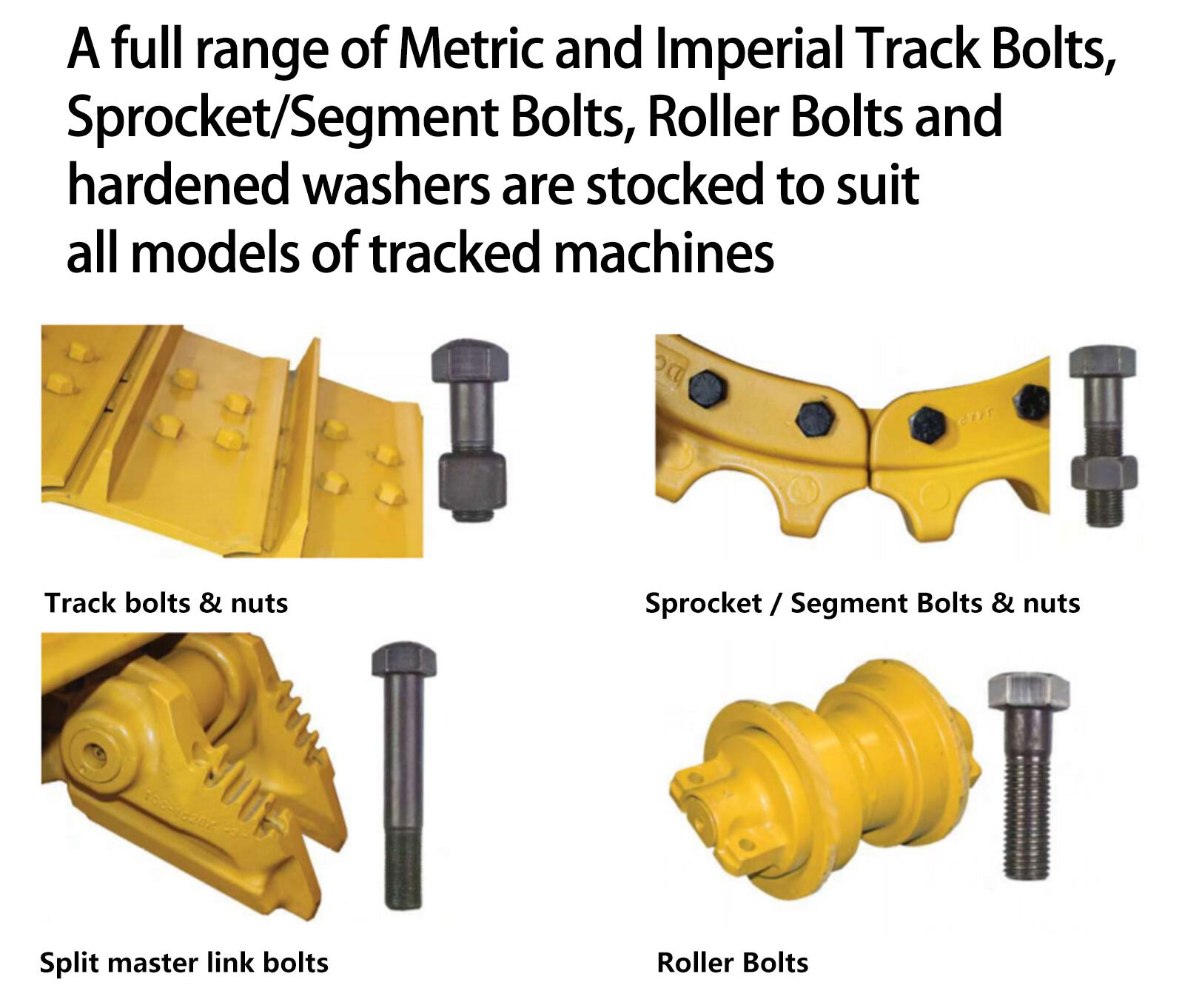

■A full range of Metric and Imperial Track Bolts, Sprocket/Segment Bolts, Roller Bolts and hardened washers are stocked to suit all models of tracked machines
■Track Bolts, Segment Bolts and Split Master Link Bolts are 12.9 grade
■Roller Bolts and Sprocket Bolts are 10.9 grade
■All hardware is forged from alloy steels and heat treated to the specifications of OEM

INSTALLATION NOTES:
■Remove all paint and scale from points of connection
■Clean bolt holes from all grease and foreign materials
■Align parts together and thread bolts in by hand or with a rattle gun before applying the final torque setting
■Install self-interlocking, HD cone type track nuts with rounded corners against the link
■Tighten ALL bolts 70% of torque rating before applying the final torque value
■It is recommended to use OEM torque settings for all roller and sprocket bolts
