Short Description:
Strong power and high energy-conservation and efciency
* The renowned brand engine equipped features strong power, ultra-low emfuel efciency.
* The double speed motor with maximum speed up to 18km/h is installed to working efciency. It can complete the site transfer rapidly and efciently.
* It can respond faster to the needs of emergency working conditions such a removing.
* The hydrostatic drive device is applied to realize quick change of appropria
the operation site.

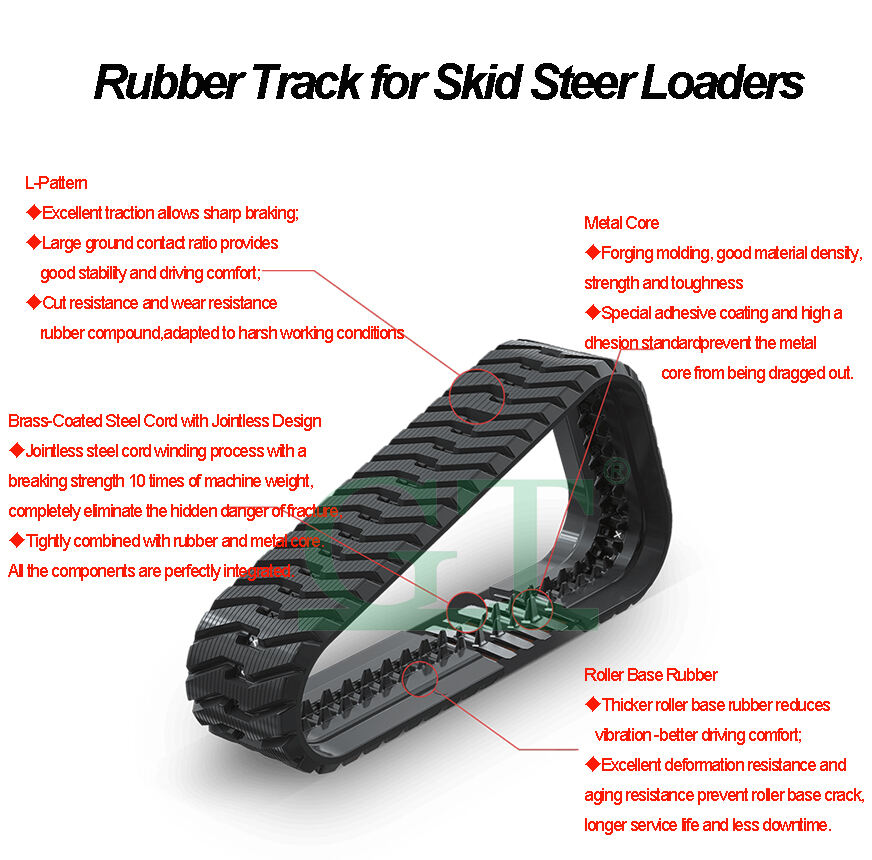

L-Pattern
◆Excellent traction allows sharp braking;
◆Large ground contact ratio provides good stability and driving comfort;
◆Cut resistance and wear resistance rubber compound,adapted to harsh working conditions
Roller Base Rubber
◆Thicker roller base rubber reduces vibration -better driving comfort.
◆Excellent deformation resistance and aging resistance prevent roller base crack, longer service life and less downtime
Metal Core
◆Forging molding, good material density, strength and toughness
◆Special adhesive coating and high adhesion standardprevent the metal core from being dragged out.
Brass-Coated Steel Cord with Jointless Design
◆Jointless steel cord winding process with a breaking strength 10 times of machine weight, completely eliminate the hidden danger of fracture,
◆Tightly combined with rubber and metal core. All the components are perfectly integrated.
|
Track Size (WidthxPitch) |
Inner Guide Width(A) |
Outer Guide Width(B) |
Inner Height (C) |
Outer Height (D) |
Track Thickness (H) |
Lug Pattern | Section View |
Guide Type |
Range of Link No. |
Remarks |
| 320x86TK | 38 | 84 | 41 | 30 | 60 | B/C | Fig 2 | C | 48-52 | Takeuchi-type |
| 320x86B | 47 | 96 | 43 | 33 | 71 | B/C/Z/L | Fig 1 | B | 49-60 | Bobcat-type |
| 400x86B | 48 | 97 | 44 | 33 | 75 | B/C/Z/L | Fig 1 | B | 49-60 | Bobcat-type |
| 450x86B | 48 | 97 | 44 | 33 | 76 | B/C/Z/L | Fig 1 | B | 50-65 | Bobcat-type |
| 450x100TK | 47 | 102 | 48 | 44.5 | 77 | B/C | Fig 2 | C | 48-52 | Takeuchi-type |
