Home > Products > Ground Engaging Tools > Teeth pin & Retainer

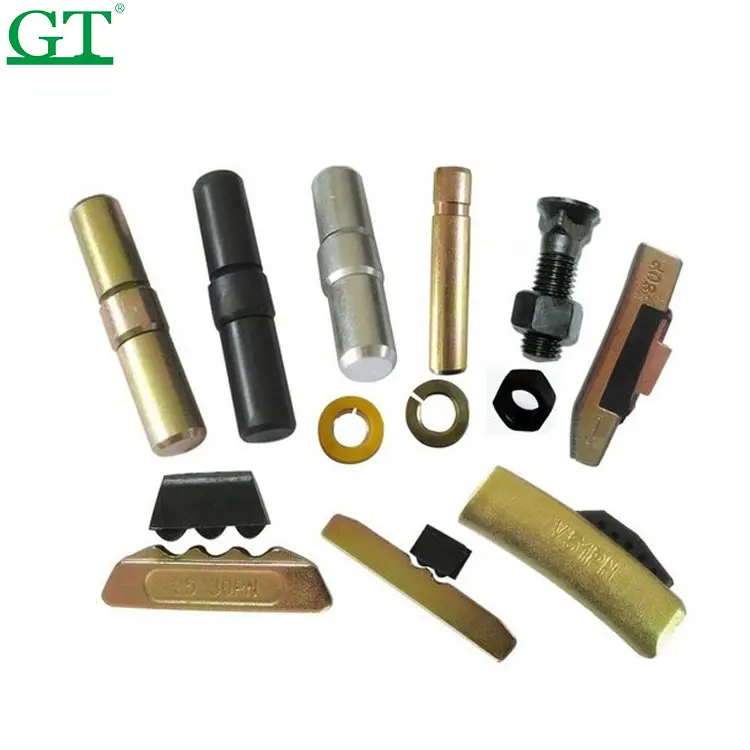

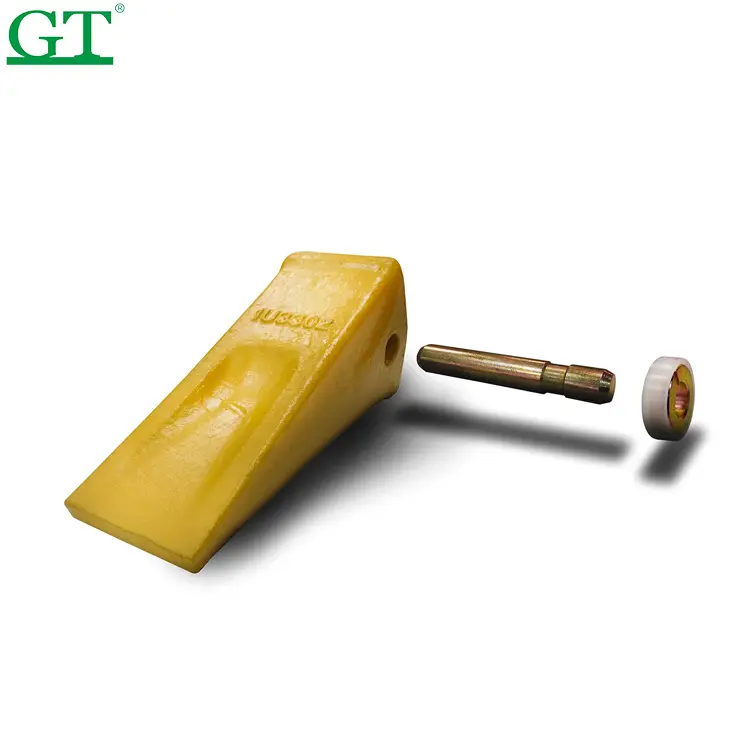

Excavator Bucket Tooth Locking Pin Lock and Washer For 9J2258 8J1433 209-70-54240
| art No.: | 209-70-54240 |
|---|---|
| Description: | Pin |
| Color: | Yellow or others |
| Weight: | 1.6Kg |
| Production Method: | Forging |
| Material: | 40Cr |
| Chemical Component: | Please contact with our sales to know details. |
| Hardness: | HRC38-42 |
| Impact: | ≥15J (25ºC) |
| Tensile Strength: | ≥1450Rm-N/mm² |
| Yield Strength: | ≥1100Re-N/mm² |
| Part number | Measurement | Description |
|---|---|---|
| 132-1008 | 94mmX25.4mm | Pin |
| 132-0999 | 63.5mmX63.5mmX12.7mm | Retainer |
| 5K1452 | Pin | |
| 1U1588 | Pin | |
| 7J9600 | Pin | |
| 1274-5103 | 3/4″ | Washer |
| 7T2479 | Pin | |
| 4406318 | Fastener pin | |
| 113-4708 | Pin | |
| 201-1239 | Pin | |
| 133-0738 | PIN | |
| 3K5234 | 1″ | Washer |
| 1495733 | Φ13.3*Φ27*8,J225,J250,J300 | Lock |
| 6Y9459 | Φ18.2*Φ35*8.5 J350 | Lock |
| VT9J2308 | Pin | |
| VT8E6259 | Pin | |
| 8T5559 | lock | |
| 8E8559 | J550 | retainer |
| 8E4708 | Φ32*197 J700 | Pin |
| 9W9026 | Pin | |
| 9W8296 | Pin | |
| 9W7112 | J200 | Pin |
| 9W2678 | Pin | |
| 9W2668 | Pin | |
| 9W1821 | 155mmX34.93mm | Pin |
| 9U9616 | Pin | |
| 9N4245 | Pin | |
| 9J9600 | Φ25*120 | Pin |
| 9J9308 | Pin | |
| 9J8442 | Pin | |
| 9J6583 | Pin | |
| 9J2358 | J350 | Pin |
| 9J2308 | Φ14*93,J300 | Pin |
| 9J2258 | J250 | Pin |
| 8J1433 | Pin | |
| 8E8469 | Φ23*Φ38*8.5,J460 J450 | Lock |
| 8E8409 | Φ21.1*Φ35*8.5,J400 | Lock |
| 8E6469 | Pin | |
| 8E6359 | Φ18.2*Φ35*8.5,J350,J460 | Lock |
| 8E6358 | Φ19*107,J350 | Pin |
| 8E6259 | Φ13.3*Φ27*8,J225,J250,J300 | Lock |
| 8E6258 | Φ14*78,J250 | Pin |
| 8E6209 | Φ105*Φ19*6 J200 | Lock |
| 8E6208 | Φ11*61 J200 | Pin |
| 8E6028 | Pin | |
| 8E5559 | Φ24*Φ47*9,J550 | Lock |
| 8E4743 | Lock | |
| 8E2230 | 70mm | lock |
| 8E2229 | 170mmX34.93mm | Pin |
| 8E0469 | Lock | |
| 8E0468 | Pin | |
| 7T3409 | Retainer | |
| 7T3408 | Pin | |
| 7K9535 | Pin | |
| 6Y8558 | Pin | |
| 6Y3909 | 153X31.75mm | Pin |
| 6Y3394 | 128X25.4mm | Pin |
| 6Y3228 | J225 | Pin |
| 6Y2527 | J460 | Pin |
| 6Y1205 | Retainer | |
| 6Y1204 | Pin | |
| 6Y1202 | Retainer | |
| 6J8811 | Φ31.8*115 | Pin |
| 6I9609 | Pin | |
| 6I6609 | Φ29*Φ50*10,J600 | Lock |
| 6I6608 | Φ30*195,J600 | Pin |
| 9F5116 | Pin | |
| 5K1458 | retainer | |
| 5K1426 | Pin | |
| 5K1425 | Pin | |
| 4T4708 | Pin | |
| 4T4707 | 70mm | lock |
| 4T2479 | Pin | |
| 4T1458 | J460 | Pin |
| 4T0001 | J200 | Pin |
| 4K0043 | Pin | |
| 4K0041 | Pin | |
| 4K0033 | Pin | |
| 4K0032 | Pin | |
| 4K0008 | Pin | |
| 4K0006 | Pin | |
| 3G9609 | J250,J300 | Retainer |
| 3G9559 | J550 | Retainer |
| 3G9549 | J350,J460 | Retainer |
| 3G9459 | Pin | |
| 3G0500 | Φ32*152 | Pin |
| 2011238 | DRS230 | Pin |
| 1U4208 | J200 | Pin |
| 1U2405 | lock | |
| 1U1558 | J550 | Pin |
| 1U0990 | Pin | |
| 1U0739 | Pin | |
| 149-5733 | Pin | |
| 136-8308 | J300 | Pin |
| 1341809 | Retainer | |
| 1341808 | Pin |
Welcome to Globe Truth (GT), your trusted source for wholesale excavator components and construction machinery parts. We are proud to be a leading provider in the industry, offering a wide range of products including ground engaging tools, bucket tooth & adapter, Sidecutters & End bits, cutting edge & blade , and Ripper Shank for bulldozers. With our extensive selection, you can rely on us to meet all your construction machinery needs. Whether you require high-quality replacements or upgrades, our products are designed to deliver exceptional performance and durability. Trust in GT for reliable and top-notch solutions that keep your machinery running smoothly.
We go the extra mile to meet the unique requirements of our customers. That’s why we proudly offer OEM services for our excavator undercarriage parts products. With our OEM services, we ensure that our customers receive customized solutions that are tailored to their specific needs.
When it comes to reliable and efficient construction machinery parts, choose GT for unparalleled expertise and exceptional service.
