Short Description:
Portable track pin press.also called track pins disassembling tooler.Which is a special tool to
disassembling the track pins from the Crawler excavators based on the principle that
transformed the hydraulic power to be mechanical energy.
INTRODUCTION
Track Link Pin Pusher /Installer is specially designed for tracked machines, tractors,loaders, shovels, excavators, etc. It is suitable to use with JCB, Caterpiller, Komatsu and Poclain make track machines. It is safe and simple to use. Hydraulic force ensures smooth operation, thereby avoiding damage to the components of the track assembly.
Ideal for removal and installation of:
track pins，master pins，bushings，master bushings Easy to use equipped with a tripod stand to assist with positioning during operation in the field.
FEATURES
1.Portable for in field repair .
2.Double acting hydraulic cylinder for one-stroke removal or installation.
3.Tooling sets for pin sizes adjustments.
4.Storage case to house all components.
5.Cast steel frame construction for extended durability.
6.Eliminate dangerous removal methods.
7.Avoid machine component damage.
8.Reduced labour hours.
| model | 80T | 100T | 200T |
| Cylinder stroke | 400mm | 400mm | 400mm |
| Maximum opening size | 400mm | 400mm | 400mm |
| Center height | 80mm | 100mm | 130mm |
| Tubing | 2m*2 | 2m*2 | 2m*2 |
| tank | 7L | 7L | 7L |
| Tooling | 11 pieces (2 lengthened indenters, 6 disassembly and assembly tools, 1 pad, 1 track piece, 1 U shaped seat | ||
| weight | 360kg | 500kg | 500kg |
| model | 80T | 150T | 200T |
| Cylinder stroke | 400mm | 400mm | 400mm |
| Maximum opening size | 400mm | 400mm | 400mm |
| Center height | 80mm | 120mm | 130mm |

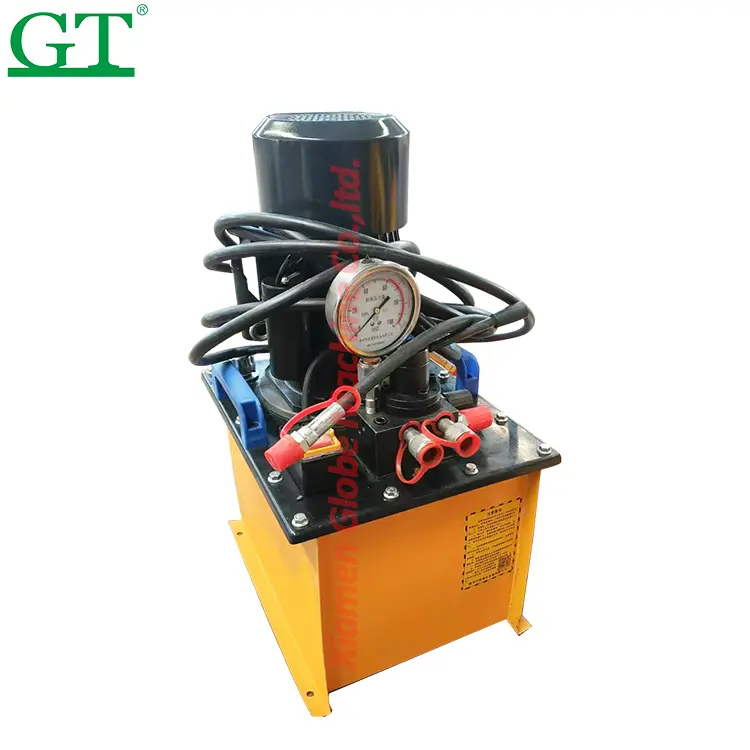

| Motor | 2.2kw/380v | 2.2kw/380v | 2.2kw/380v |
| tank | 7L | 36L | 36L |
| Tooling | 11 pieces (2 lengthened indenters, 6 disassembly and assembly tools, 1 pad, 1 track piece, 1 U-shaped seat | ||
| weight | 420kg | 560kg | 560kg |
