Our Cutting edge and Grader blader are designed and manufactured to meet OEM and industry standard for earthmoving machinery and equipment.
They are made from both high carbon and boron steel that are heat-treated and hardened to improve the lifespan while meeting the demanding requirements of earthmoving and mining applications.
| Grader blade | |||
|---|---|---|---|
| Material | High-carbon steel (C80); Boron steel (30MnB) | Part No. | 5D9553 |
| Color | Yellow or Customer Required | Size | 1828mm(6ft)*152mm*16mm 13holes*5/8″ |
| Logo | Yassian or Customer Required | G.W. | 30.3 kg |
| Hardness | HB280-500 | N.W. | 32.3 kg |
| MOQ | 1 pc | Packing | Plywood pallet |
| Delivery time | 25-30 days (one container) | Suitable machine | Caterpillar, Komatsu, JCB … |
| Certificates | ISO9001: 2015, SGS | Payment | Ali Trade Assurance; T/T; L/C; Western Union … |

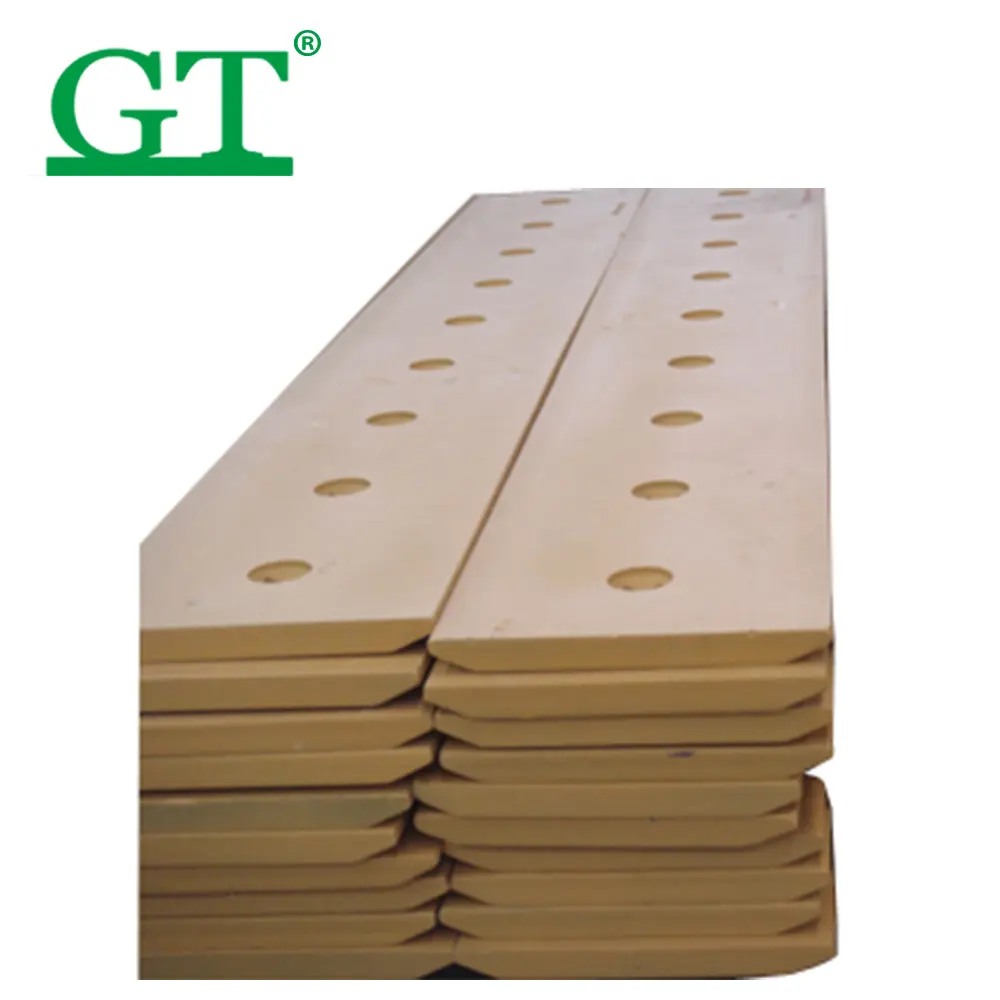

Cutting edge:
We has introduced Boron steel(heat treated) in producing its ground engaging tools for bulldozer machineries which has the superior over carbon steel.
All our Parts are through hardened to 440-520HB and have a yield strength of 1440N/mm2.
Adavantage of using Heat Treated Boron Material Ground Engaging Tools
The above technical data shows that the Boron type of GET has superior mechanical properties with much higher resistance to wear and abrasion due to the nature of chemical composition. As a result,the lifespan of Boron type of GET will be at least twice that of carbon steel.Thus,the cost savings on downtime,labour charges and plow bolts and nuts are tremendous.
| Part No. | Description | Weight | Model Application |
|---|---|---|---|
| (kg) | |||
| 5D9553 | DBC Grader Blade 1828*152*16 13*5/8″ | 29 | 12G,12H,14T,112T,120,120G,120H,130G,135H,140H,140G,12F,322B |
| 5D9554 | DBC Grader Blade 2133*152*16 15*5/8″ | 34 | 12G,12H,120G,120H,130G,16T,140H,135H,143H,12F |
| 5D9558 | DBC Grader Blade 1828*203*19 13*5/8″ | 50 | 12G,12H,14T,112T,120,120G,135H,140G,140,152X,143H,140H,163H, |
| 160K,140K,12F | |||
| 5D9559 | DBC Grader Blade 2133*203*19 15*5/8″ | 59 | 12G,12H,120G,120H,16T,140G,140K,143H,140H,135H,12F |
| 5D9556 | DBC Grader Blade 1828*152*19 13*5/8″ | 35.5 | 12G,12H,14T,112T,120,120G,120H,130G,135H,12F |
| 5D9557 | DBC Grader Blade 2133*152*19 15*5/8″ | 42 | 12G,12H,120G,120H,130G,16T,12F |
| 5D9562 | DBC Grader Blade 1828*203*16 13*5/8″ | 42 | 12G,12H,14T,112T,120,120G,120H,135H,140G,140,152X,12F,140H,143H, |
| 135H,12F | |||
| 5D9561 | DBC Grader Blade 2133*203*16 15*5/8″ | 49 | 12G,12H,120G,120H,16T,140G,143H,140H,135H,163H,160H,12F |
| 4T2244 | DBC Grader Blade 1828*203*25 13*5/8″ | 68 | 3304,3306,120G,12G,130G,140G |
| 4T2242 | DBC Grader Blade 2133*203*25 15*5/8″ | 79 | 3304,3306,120G,12G,130G,140G |

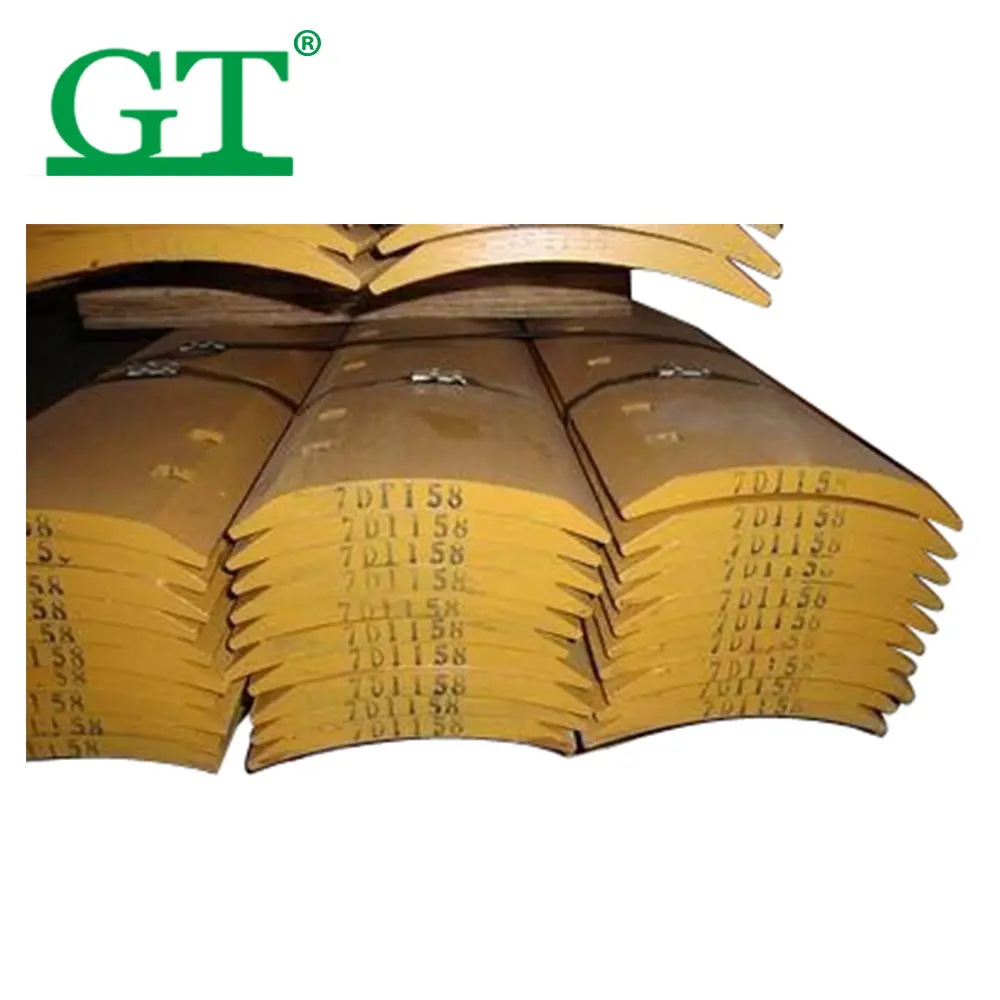

| 7D1158 | DBC Grader Blade 2133*203*16 15*3/4″ | 49 | 14G,14H,120M,160K,160M,163H,160H,14M,140K,12M,143H |
| 7D1576 | DBC Grader Blade 1828*203*19 13*3/4″ | 50 | 12M,120K2,120K,120M,143H,12K,160M,163H,140M,140K,160H, |
| 7D1577 | DBC Grader Blade 2133*203*19 15*3/4″ | 59 | 14G,14H,12M,143H,12K,140K2,14M,140M,163H,160M,140K,120M,120K |
| ,160H,160K,160HNA,120M2AWD,160M3,12M2,160M2AWD,12M2AWD, | |||
| 120K2,12M,140M2,120M2,160M2,143H,14LAWD,140M3,140K,140MAWD, | |||
| 14H,160MAWD,120MAWD,140HNA,160H,12HNA,12M3,14M3 | |||
| 4T2231 | DBC Grader Blade 1828*203*25 13*3/4″ | 68 | 18M3,16H |
| 4T2233 | DBC Grader Blade 2133*203*25 15*3/4″ | 79 | 3304,3306,3406,130G,14G,16G,12G,140G |
There are our blade promotion stock list for your reference:
| Part No. | PCS | NET WEIGHT | FIT MACHINE TYPE |
|---|---|---|---|
| 1U0295GB25 | 2 | 52.40 | 916/26.953/51 |
| 1U0593B40 | 2 | 140.40 | 966D/E/F/G |
| 1U0593C30 | 1 | 99.00 | |
| 1U0761GB40 | 3 | 42.20 | 980B/C.988B/F |
| 1U1545B40 | 1 | 58.80 | 9SU.9U |
| 1U1546B40 | 1 | 58.80 | 9SU.9U |
| 232-70-12141B13 | 2 | 24.67 | |
| 232-70-12142C13 | 50 | 24.30 | |
| 232-70-12150C13 | 4 | 7.51 | GD300A-1 |
| 232-70-12160B13 | 4 | 8.22 | GD300A-1 |
| 232-70-52180B16 | 1 | 8.29 | GD621A-1 |
| 232-70-52190B13 | 11 | 9.99 | GD621A-1 |
| 232-70-52190C13 | 243 | 12.73 | GD621A-1 |
| 232-70-52190C19 | 10 | 14.60 | GD621A-1 |
| 232-70-52191B13 | 1 | 12.40 | GD405/A-1.GD500-2 |
| 232-70-52191C13 | 23 | 12.43 | GD405/A-1.GD500-2 |
| 233-70-12141B16 | 1 | 24.67 | 51-LB |
| 233-70-12141C16 | 196 | 24.67 | 51-LB |
| 234-70-12192B13 | 2 | 32.13 | |
| 234-70-12192C13 | 40 | 28.40 | |
| 234-70-32230B19 | 367 | 13.39 | GD705A-3 |
| 234-70-32240B13 | 187 | 12.70 | GD705A-3 |
| 235-70-12140B19 | 172 | 66.59 | |
| 3/4*6*78C19 | 58 | 39.00 | |
| 3/4*6*94.5C19 | 38 | 52.10 | |
| 3G6395B35B | 2 | 24.88 | 960C/D/E |
| 3G8281B40 | 1 | 63.00 | 824S.824G.9SU |
| 3G8282B40 | 1 | 63.00 | 824S.824G.9SU |
| 3G8283B40 | 3 | 51.35 | 8U.8SU.9U.9C |
| 3G8284B40 | 3 | 51.35 | 8U.8SU.9U.9C |
| 3G8287B38 | 28 | 35.15 | 8A.8SU.825C |
| 3G8288B38 | 27 | 33.92 | 8A.8SU.825C |
| 3G8297C22 | 1 | 12.70 | 815S.815F.5A.6A |
| 3G8298C22 | 1 | 12.70 | 815S.815F.5A.6A |
| 3G8315C30 | 1 | 28.10 | 7A.7S.7U.835.834 |
| 3G8316C30 | 1 | 28.10 | 7A.7S.7U.835.834 |
| 3G9512B30 | 26 | 18.60 | 950.B.E |
Note:
1.MOQ: Mini order 20″ container
2.Payment: T/T before shipment
3.Material: Made by 80# steel
Any items of interest you,pls feel free to contact us!
