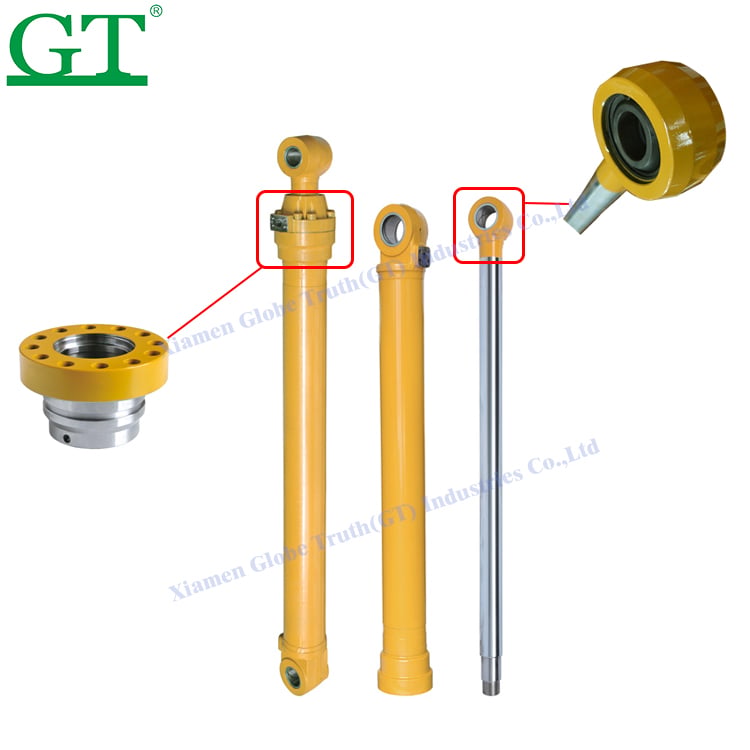

We engineer and supply heavy-duty hydraulic cylinders built specifically for the grueling demands of excavation, mining, and civil construction. Whether you need a standard boom cylinder replacement or high-pressure bucket cylinders that handle constant impact, our components deliver exact OEM compatibility and reliable field performance.
Every cylinder is manufactured in our ISO-certified plant in Quanzhou, drawing on decades of heavy machinery expertise to ensure your equipment experiences zero dropped pressure and minimal downtime.

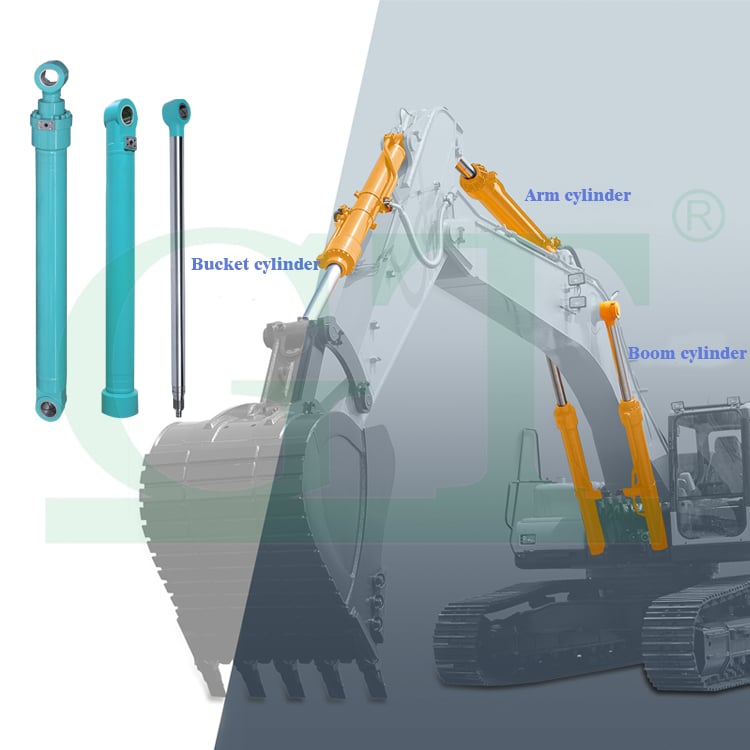

Application: Boom Cylinder, Arm (Stick) Cylinder, Bucket Cylinder
Cylinder Tube: Cold-drawn ST52.3 / E355 carbon steel, honed to an internal roughness of for reduced friction.
Piston Rod: 40Cr or 42CrMo alloy steel, precision ground and induction hardened.
Chrome Plating: Hard chrome coated thickness), delivering surface hardness of HV850-1050 to resist pitting and scoring.
Sealing System: Outfitted with original NOK or Hallite seal kits
Operating Pressure: Rated working pressure of 34.3 MPa (350 Bar), with factory proof testing up to 45 MPa.
The piston rod undergoes strict centerless grinding and induction hardening before the chrome plating process. This step is critical—it ensures the rod doesn't bend or score when the bucket hits hard rock, protecting the internal seals from premature tearing.

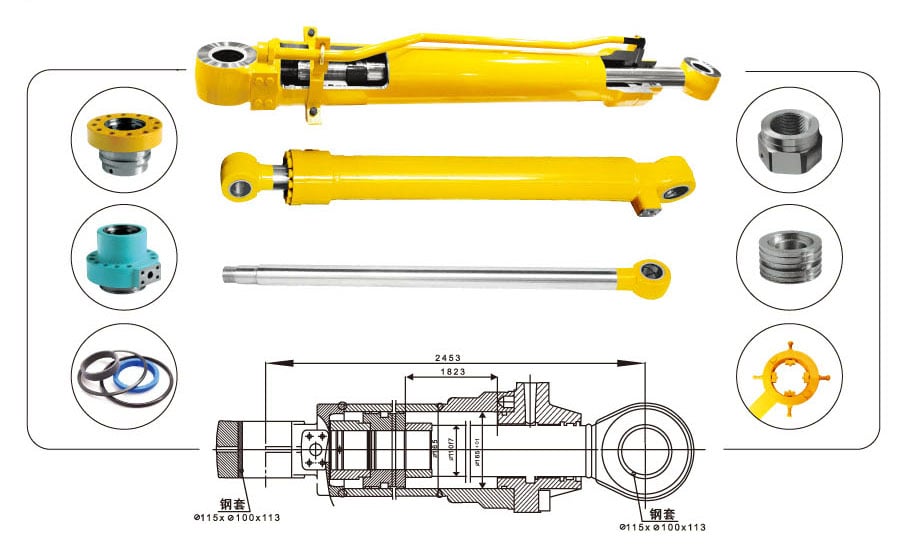

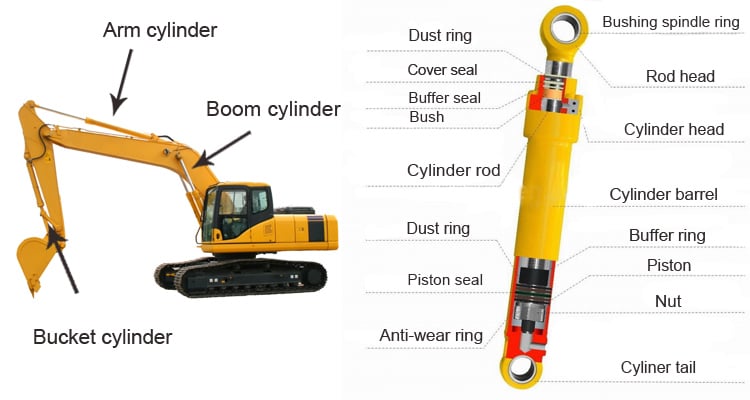

We utilize heavy-wall seamless tubing that is roller-burnished to a mirror finish. Paired with a multi-lip seal configuration (including a high-durability dust wiper and buffer seal), our cylinders prevent oil bypass even during prolonged heavy-lifting cycles.
To prevent structural shocking to the excavator's frame, our cylinders feature integrated cushioning mechanisms. This dampens the impact when the arm or bucket reaches full extension, extending both the cylinder life and the linkage pin life.
We do not batch-test. Every single cylinder undergoes full hydraulic testing before it leaves our facility:
Material Check: Ultrasonic flaw detection on raw steel bars to guarantee zero internal micro-cracks.
Pressure Hold Test: Tested at 1.25 times the rated working pressure to ensure flawless sealing under peak loads.
| PC20-7 hydraulic cylinder | D64P-12 slewing bearing | D80 arm cylinder |
| PC20-7 boom cylinder | D64P-12 bucket teeth | D80 bucket cylinder |
| PC20-7 arm cylinder | D64P-12 bucket adaptor | D80 hydraulic pump |
| PC20-7 bucket cylinder | D64P-12 excavator bucket | D80 swing motor |
| PC20-7 hydraulic pump | D64P-12 track link | D80 swing gearbox |
| PC20-7 swing motor | PC30 hydraulic cylinder | D80 slewing bearing |
| PC20-7 swing gearbox | PC30 boom cylinder | D80 bucket teeth |
| PC20-7 slewing bearing | PC30 arm cylinder | D80 bucket adaptor |
| PC20-7 bucket teeth | PC30 bucket cylinder | D80 excavator bucket |
| PC20-7 bucket adaptor | PC30 hydraulic pump | D80 track link |
| PC20-7 excavator bucket | PC30 swing motor | PC30-3 hydraulic cylinder |
| PC20-7 track link | PC30 swing gearbox | PC30-3 boom cylinder |
| PC200 hydraulic cylinder | PC30 slewing bearing | PC30-3 arm cylinder |
| PC200 boom cylinder | PC30 bucket teeth | PC30-3 bucket cylinder |
| PC200 arm cylinder | PC30 bucket adaptor | PC30-3 hydraulic pump |
| PC200 bucket cylinder | PC30 excavator bucket | PC30-3 swing motor |
| PC200 hydraulic pump | PC30 track link | PC30-3 swing gearbox |
| PC200 swing motor | PC200-1 hydraulic cylinder | PC30-3 slewing bearing |
| PC200 swing gearbox | PC200-1 boom cylinder | PC30-3 bucket teeth |
| PC200 slewing bearing | PC200-1 arm cylinder | PC30-3 bucket adaptor |
| PC200 bucket teeth | PC200-1 bucket cylinder | PC30-3 excavator bucket |
| PC200 bucket adaptor | PC200-1 hydraulic pump | PC30-3 track link |
| PC200 excavator bucket | PC200-1 swing motor | PC200-3 hydraulic cylinder |
| PC200 track link | PC200-1 swing gearbox | PC200-3 boom cylinder |
| PC220-8 hydraulic cylinder | PC200-1 slewing bearing | PC200-3 arm cylinder |
| PC220-8 boom cylinder | PC200-1 bucket teeth | PC200-3 bucket cylinder |
| PC220-8 arm cylinder | PC200-1 bucket adaptor | PC200-3 hydraulic pump |
| PC220-8 bucket cylinder | PC200-1 excavator bucket | PC200-3 swing motor |
| PC220-8 hydraulic pump | PC200-1 track link | PC200-3 swing gearbox |
| PC220-8 swing motor | PC270-7 hydraulic cylinder | PC200-3 slewing bearing |
| PC220-8 swing gearbox | PC270-7 boom cylinder | PC200-3 bucket teeth |
| PC220-8 slewing bearing | PC270-7 arm cylinder | PC200-3 bucket adaptor |
| PC220-8 bucket teeth | PC270-7 bucket cylinder | PC200-3 excavator bucket |
| PC220-8 bucket adaptor | PC270-7 hydraulic pump | PC200-3 track link |
| PC220-8 excavator bucket | PC270-7 swing motor | PC202B hydraulic cylinder |
| PC220-8 track link | PC270-7 swing gearbox | PC202B boom cylinder |
| PC300LC-7 hydraulic cylinder | PC270-7 slewing bearing | PC202B arm cylinder |
| PC300LC-7 boom cylinder | PC270-7 bucket teeth | PC202B bucket cylinder |
| PC300LC-7 arm cylinder | PC270-7 bucket adaptor | PC202B hydraulic pump |
| PC300LC-7 bucket cylinder | PC270-7 excavator bucket | PC202B swing motor |
| PC300LC-7 hydraulic pump | PC270-7 track link | PC202B swing gearbox |
| PC300LC-7 swing motor | PC350-6/7 hydraulic cylinder | PC202B slewing bearing |
| PC300LC-7 swing gearbox | PC350-6/7 boom cylinder | PC202B bucket teeth |
| PC300LC-7 slewing bearing | PC350-6/7 arm cylinder | PC202B bucket adaptor |
| PC300LC-7 bucket teeth | PC350-6/7 bucket cylinder | PC202B excavator bucket |
| PC300LC-7 bucket adaptor | PC350-6/7 hydraulic pump | PC202B track link |
| PC300LC-7 excavator bucket | PC350-6/7 swing motor | PC400 hydraulic cylinder |
| PC300LC-7 track link | PC350-6/7 swing gearbox | PC400 boom cylinder |
| PC800 hydraulic cylinder | PC350-6/7 slewing bearing | PC400 arm cylinder |
| PC800 boom cylinder | PC350-6/7 bucket teeth | PC400 bucket cylinder |
| PC800 arm cylinder | PC350-6/7 bucket adaptor | PC400 hydraulic pump |
| PC800 bucket cylinder | PC350-6/7 excavator bucket | PC400 swing motor |
| PC800 hydraulic pump | PC350-6/7 track link | PC400 swing gearbox |
| PC800 swing motor | PC1100 hydraulic cylinder | PC400 slewing bearing |
| PC800 swing gearbox | PC1100 boom cylinder | PC400 bucket teeth |
| PC800 slewing bearing | PC1100 arm cylinder | PC400 bucket adaptor |
| PC800 bucket teeth | PC1100 bucket cylinder | PC400 excavator bucket |
| PC800 bucket adaptor | PC1100 hydraulic pump | PC400 track link |
| PC800 excavator bucket | PC1100 swing motor | PC1250 hydraulic cylinder |
| PC800 track link | PC1100 swing gearbox | PC1250 boom cylinder |
| D64P-12 hydraulic cylinder | PC1100 slewing bearing | PC1250 arm cylinder |
| D64P-12 boom cylinder | PC1100 bucket teeth | PC1250 bucket cylinder |
| D64P-12 arm cylinder | PC1100 bucket adaptor | PC1250 hydraulic pump |
| D64P-12 bucket cylinder | PC1100 excavator bucket | PC1250 swing motor |
| D64P-12 hydraulic pump | PC1100 track link | PC1250 swing gearbox |
| D64P-12 swing motor | D80 hydraulic cylinder | PC1250 slewing bearing |
| D64P-12 swing gearbox | D80 boom cylinder | PC1250 bucket teeth |
