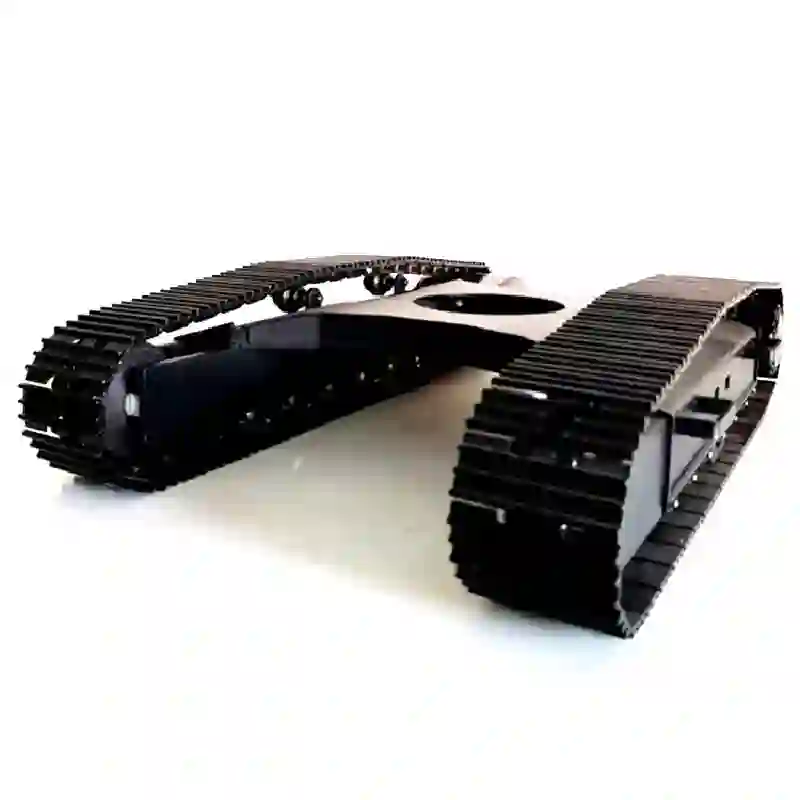

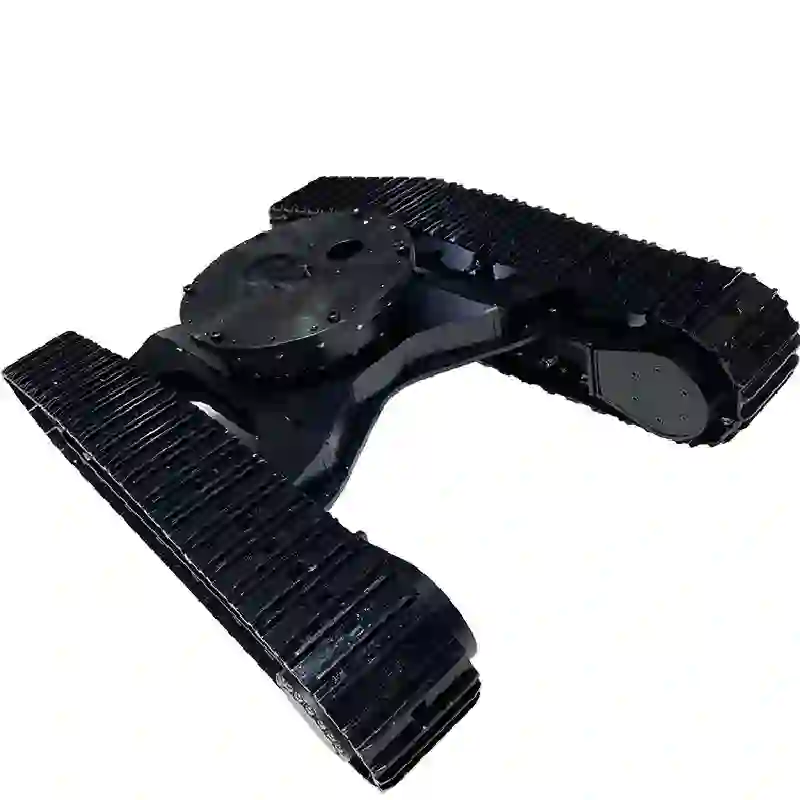

Steel/Rubber Track Chassis Mainly use for Drilling Machine, dumper, excavator and other crawler vehicle. It can suit hard environment, waterproof and amphibious chassis
| Model | Dimensions | running speed | weight capacity | |||||
|---|---|---|---|---|---|---|---|---|
| L | L1 | B0 | B | H | one-velocity | double speed | ||
| mm | Km/h | Km/h | T | |||||
| LDZ04-A | 760-1750 | 1220-2180 | 800-1800 | 200-350 | 460-490 | 2 | 3.3 | 2T-6T |
| LDZ06-A | 900-2100 | 1360-2650 | 800-2100 | 250-450 | 575-618 | 2 | 3.6 | 4T-8T |
| LDZ10-A | 1000-2400 | 1550-2650 | 900-2200 | 300-450 | 575-681 | 2 | 4.7 | 5T-12T |
| LDZ15-A | 1600-4000 | 2300-4700 | 1100-2400 | 350-500 | 730-800 | 1.5 | 5.1 | 10T-20T |
| LDZ30-A | 2000-4500 | 2790-5230 | 1300-2600 | 350-600 | 730-860 | 1.5 | 5 | 15T-35T |
| LDZ60-A | 2400-4600 | 3170-5370 | 1600-2800 | 400-760 | 820-920 | 2 | – | 20T-65T |
| LDZ80-A | 3000-5000 | 3860-5860 | 2000-3000 | 500-800 | 900-1100 | 2.5 | – | 30T-80T |
| LDZ90-A | 3000-5500 | 3920-6420 | 2200-4200 | 600-900 | 980-1200 | 2.5 | – | 40T-100T |
| LDZ120-A | 3500-7000 | 4600-8100 | 3000-8000 | 700-900 | 1200-1480 | 2 | – | 50T-120T |
| Model | Dimensions | running speed | Weight Capacity | |||||
|---|---|---|---|---|---|---|---|---|
| L | L1 | B0 | B | H | one-velocity | double speed | ||
| mm | Km/h | Km/h | T | |||||
| LDZ04-B | 760-1750 | 1220-2180 | 800-1800 | 200-350 | 460-490 | 2 | 3.3 | 2T-6T |
| LDZ06-B | 900-2100 | 1360-2650 | 800-2100 | 250-450 | 575-618 | 2 | 3.6 | 4T-8T |
| LDZ10-B | 1000-2400 | 1550-2650 | 900-2200 | 300-450 | 575-618 | 2 | 4.7 | 5T-12T |
| LDZ15-B | 1600-4000 | 2300-4700 | 1100-2400 | 350-500 | 730-800 | 1.5 | 5.1 | 10T-20T |
| LDZ30-B | 2000-4500 | 2790-5230 | 1300-2600 | 350-600 | 730-860 | 1.5 | 5 | 15T-35T |
